FORNAX ABS

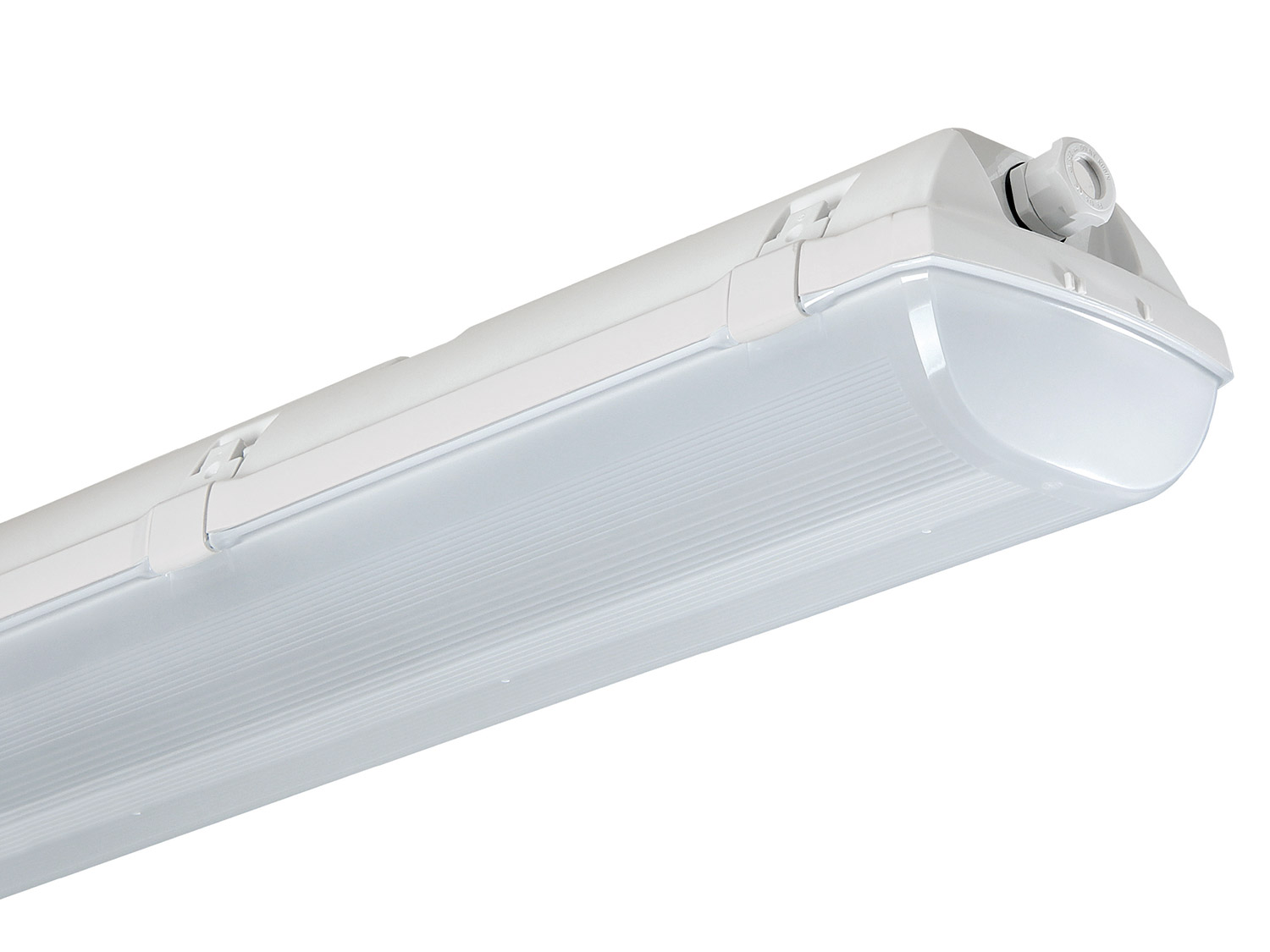

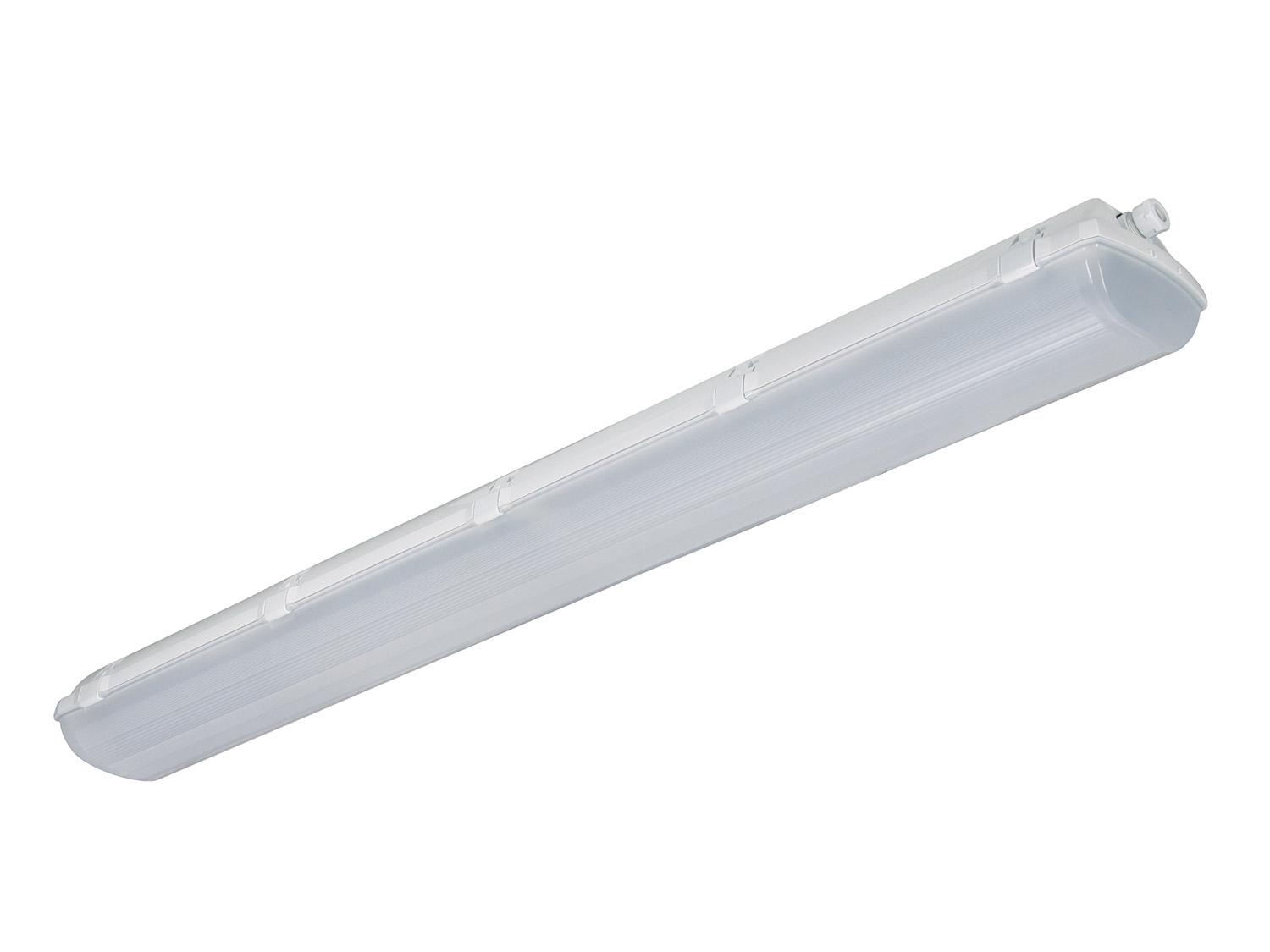

Plastic industrial LED light fitting with high chemical resistance, with diffuser made of translucent acrylate.

The light fitting is suitable for the environment where ammoniac fumes, lixiviants, alkaline compounds and hot water (hydrolyses) can be present. We recommend this light fitting for agricultural operations, stables, car washing lines, warehouses, mechanical workshops and laboratories without a danger of explosion of gases, dust and combustible fumes.

The light fitting is resistant to dust, moisture and spouting water. The body made of ABS and the diffuser made of AC have increased chemical resistance.

Description

Features:

From 16W to 104W
IP66 and IK10
Maximum ambient temperature: ta = 50 °C,
Lifetime: 50,000 hours / L90B10
Standard model – CRI > 80: 4000 K

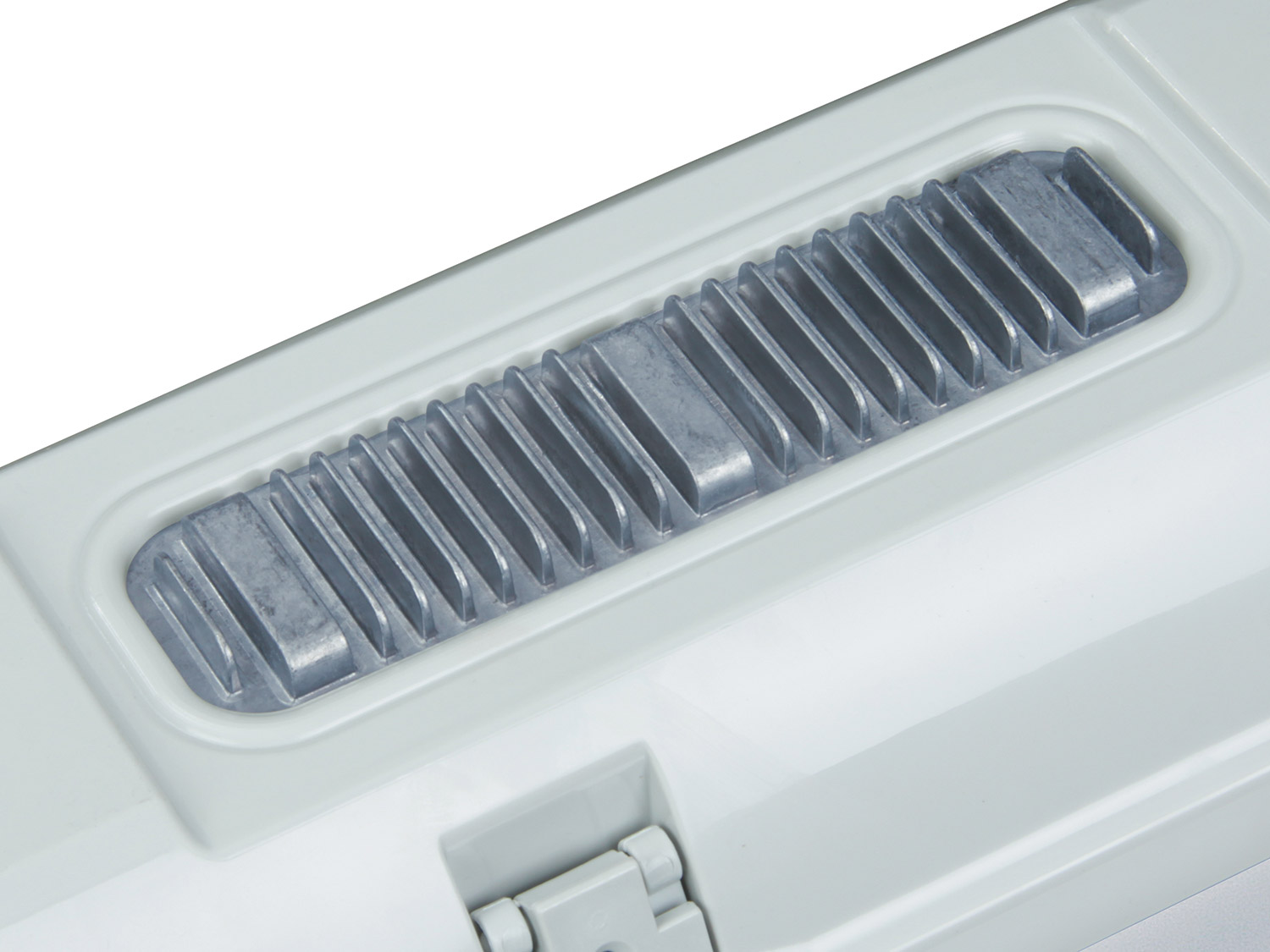

Body: dark grey ABS with Al coolers (ABS Al), UV stable, chemically resistant
Certification: ENEC, CB, HACCP, CE
The watt and lumen values can, in accordance with valid standards, vary by ± 7,5 %

Technical information:

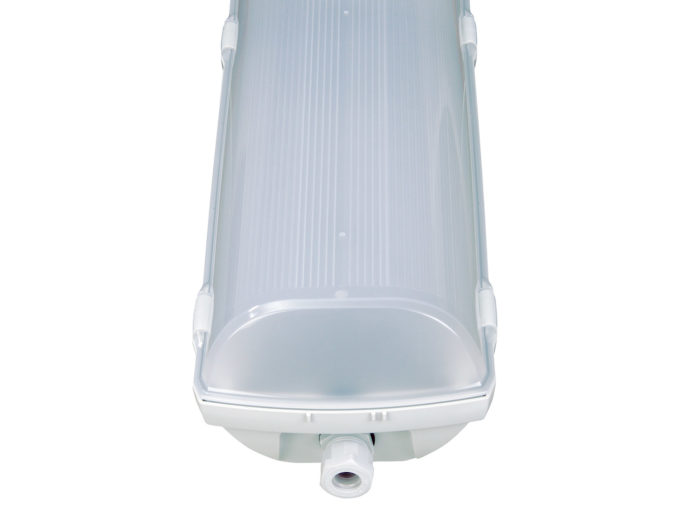

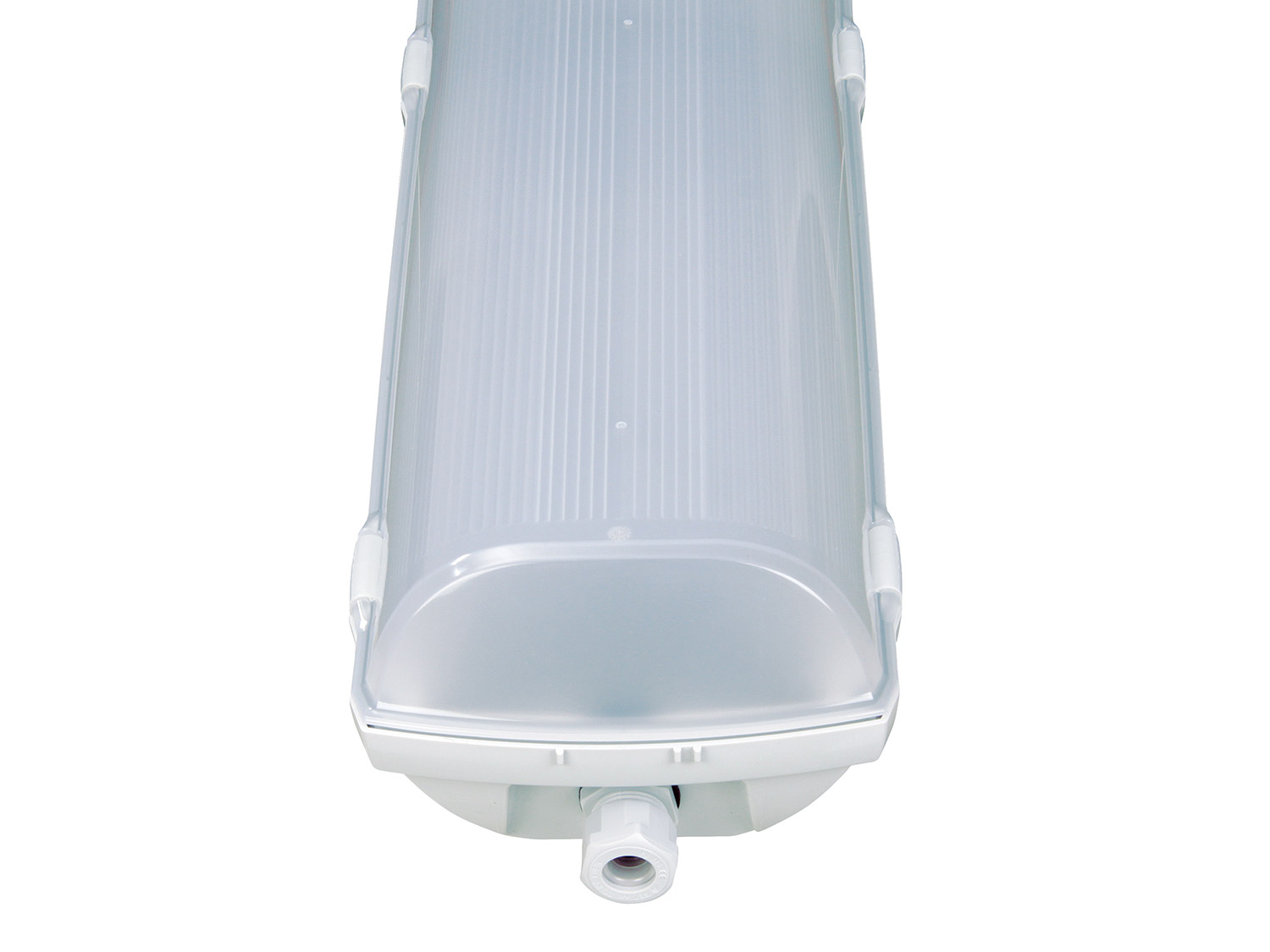

Diffuser: translucent acrylate (AC), UV stable, chemically resistant
Reflector: steel sheet, white color (RAL 9003)
Clips: polyamide + 15 % glass fiber or stainless steel + polyamide
Sealing: polyurethane (PUR), foamed body groove

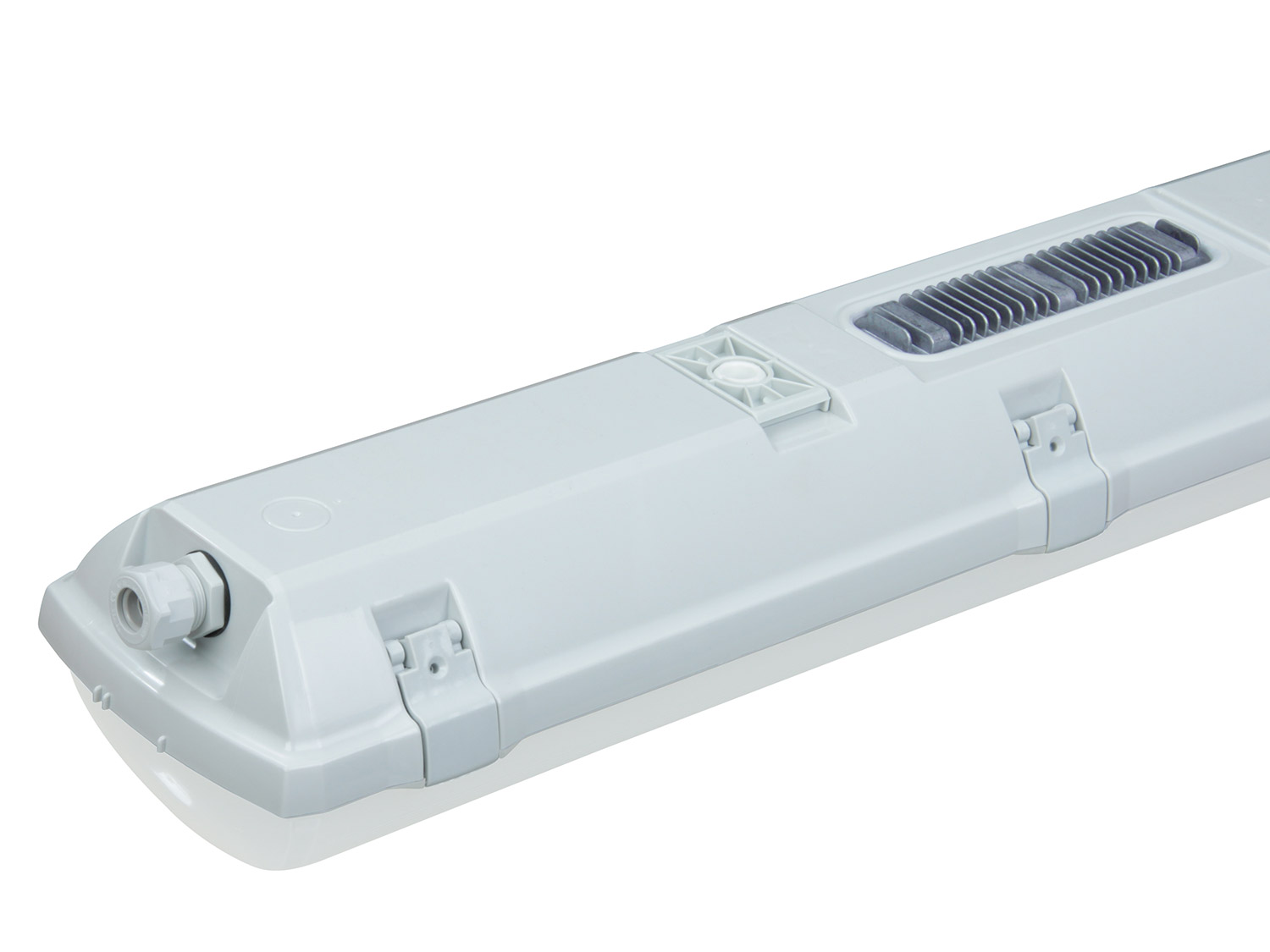

Cable glands: screwed PG 13,5
Distance part: polyamide + 10 % glass fiber
Terminal block: screwless, three-pole (basic version)

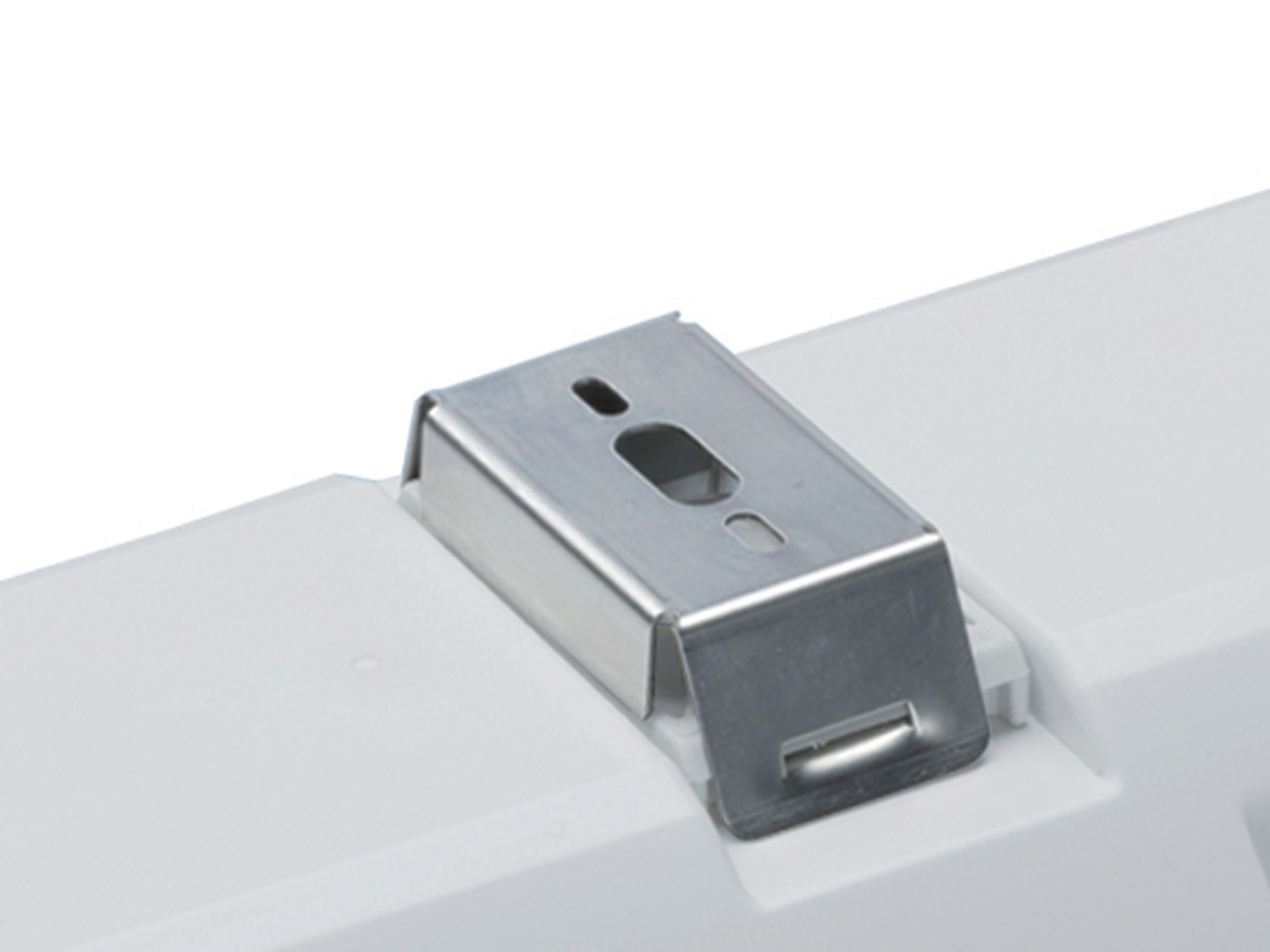

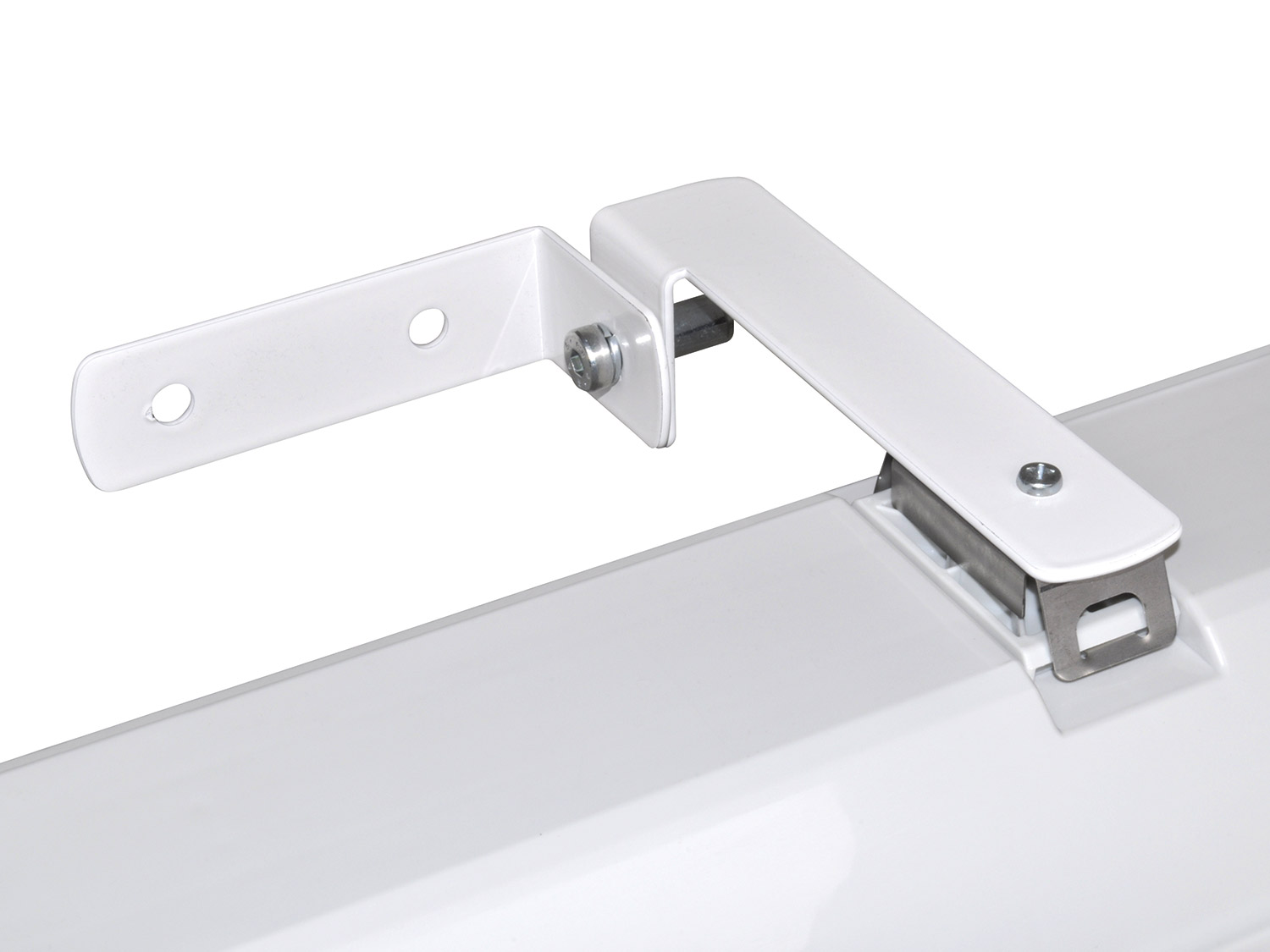

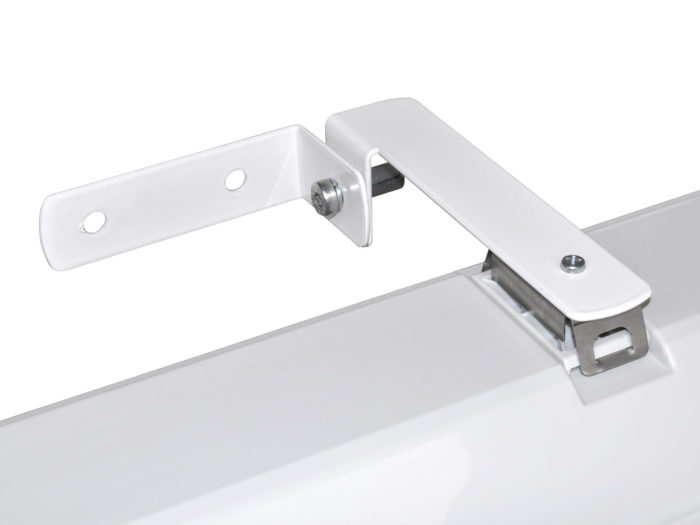

Installation options: attachment with the use of side hangers to the wall/ Directly to a ceiling or a wall with the use of screws and stainless brackets/ Suspension with the use of stainless hooks

Areas of application:

Industrial: Warehouses/ Food industry
Indoor: Commercial lighting
Infrastructures: Stations and terminals/ Garages/ Tunnels
Agricultural: Farms and stables/ Mills and granaries

Type	Ta. Max	Luminous flux light fitting (lm)	Power (W)	Efficacy (lm/W)	Net weight (kg)	Luminaire length (mm)
FORNAX ABS 2600	50	2310	16	144	1.5	612
FORNAX ABS 3200	50	2740	19	144	1.5	612
FORNAX ABS 4400	45	3860	27	143	1.7	612
FORNAX ABS 5200	50	4530	31	146	2.9	1172
FORNAX ABS 6400	50	5510	37	149	2.9	1172
FORNAX ABS 8800	45	7660	51	150	3	1172
FORNAX ABS 12800	35	12320	84	147	3	1172
FORNAX ABS 6500	50	5610	38	148	3.8	1452
FORNAX ABS 8000	50	6820	46	148	3.9	1452
FORNAX ABS 11000	45	10600	71	149	3.9	1452
FORNAX ABS 16000	35	15440	104	148	3.9	1452
